Equipment：

Environmental Friendly and Vetilation Equipment Series

Water Type Exhaustion Hood

Wash Type Exhaustion Hood

Circulation Period: 20 - 60 min.
Circulated Water Pressure: 1.5 - 2.0kg/cm²
Circulated Water Rate: 3Lit./min./nozzle
Detergent Injection: 12 - 20 sec./cycle
Detergent Consumption: 5ml/hr./nozzle
Exhaust Air Flow Velocity: <5m/s
Fresh Water Intake Duration: 60 - 75 sec.
Fresh Water Pressure: 1.5 - 2.0 kg/cm²
Interval of Nozzle: 200mm

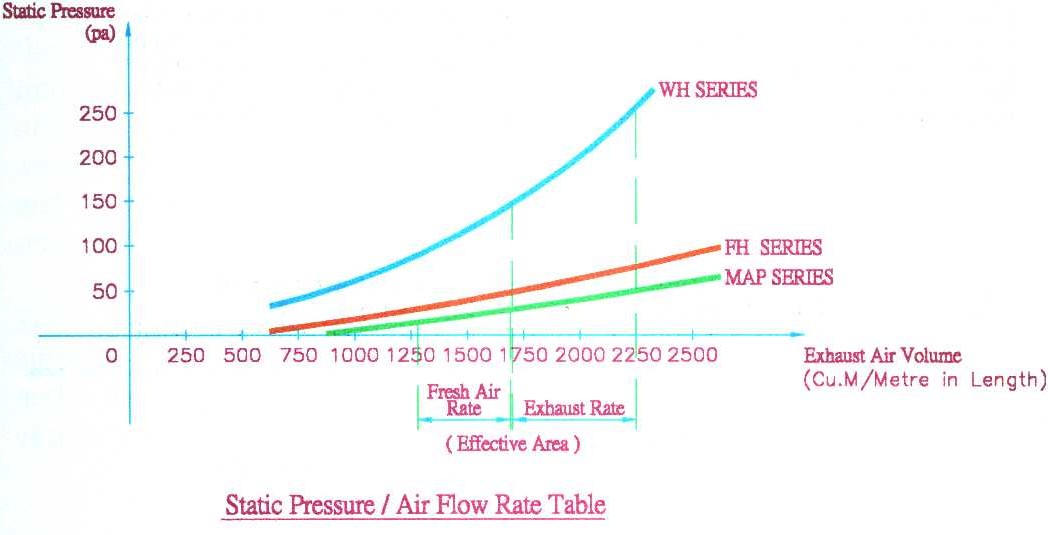

Static Pressure: <250p.a.
Water Consumption: <10 Lit./hr.
Water Pump Power: 0.5 - 1.0 H.P.

Water Type Exhaustion Hood

General Characteristics (Catalogue in pdf)
